American Wood Pallet Automatic Nailing Machine – High-Efficiency Pallet Production Solution

Overview

The American wood pallet automatic nailing machine is a state-of-the-art wood pallet production machine designed for high-speed, precision nailing and seamless automation. It is an essential part of the American wood pallet production line, offering unmatched efficiency, durability, and customization for various pallet types.

Equipped with advanced technology, this American nailing machine ensures fast, reliable, and labor-saving operation, making it ideal for large-scale pallet manufacturing.

Key Features & Advantages

1. Intelligent Touch Screen Control

• 15-inch touch screen for easy operation
• Adjust nail position, quantity, and speed directly on the screen
• Remote monitoring & troubleshooting for minimal downtime
• Lifetime remote program upgrades for continuous improvement

2. Premium Components for Maximum Reliability

• PLC: Siemens (high-precision control)

• Nail Gun: Bostitch (American-made for superior durability)

• Solenoid Valve & Cylinder: Taiwan AirTAC (smooth pneumatic performance)

• Electrical Components: Chint (trusted safety & efficiency)

• High-Speed Solenoid Valve: American MAC (ensures rapid nail gun response)

3. Fully Automated Operation

• One-person operation – reduces labor costs

• Automatic nailing, palletizing, and transmission – boosts productivity

• Aviation quick plug – simplifies wiring and maintenance

4. Versatile Pallet Production

Compatible with 3-beam & 4-beam pallets

5. Customizable & Space-Efficient Design

• Adjustable pallet size (beam length ≤ 1300mm for container compatibility)
• Plastic-sprayed coating – anti-rust, long-lasting performance

• Hydraulic palletizing system – powerful and stable stacking

-- Technical data

Model	AWPN-1300
Wood pallet length	600-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production efficiency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Weight	2000kg

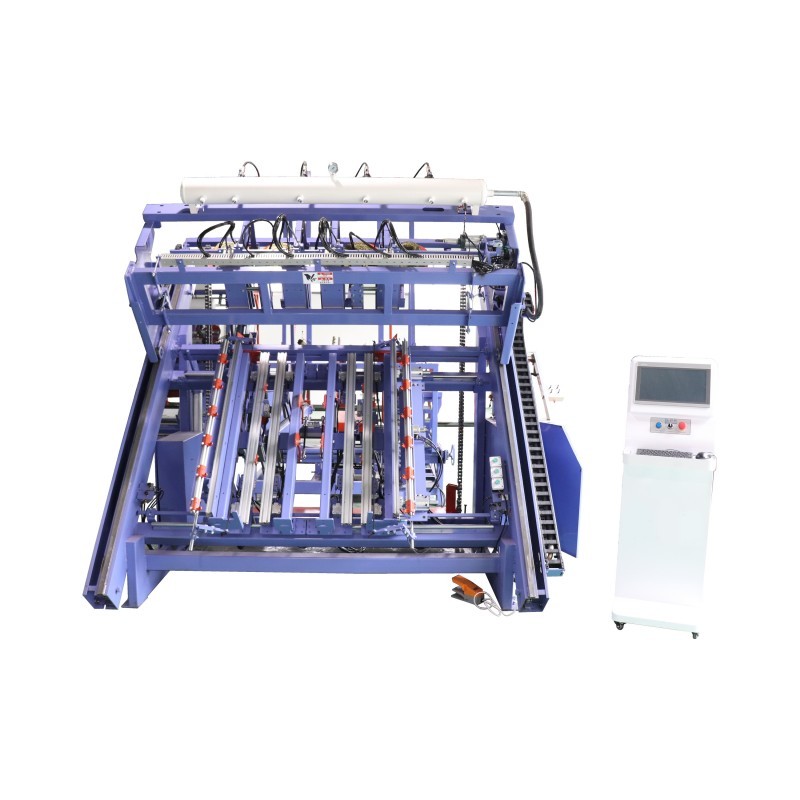

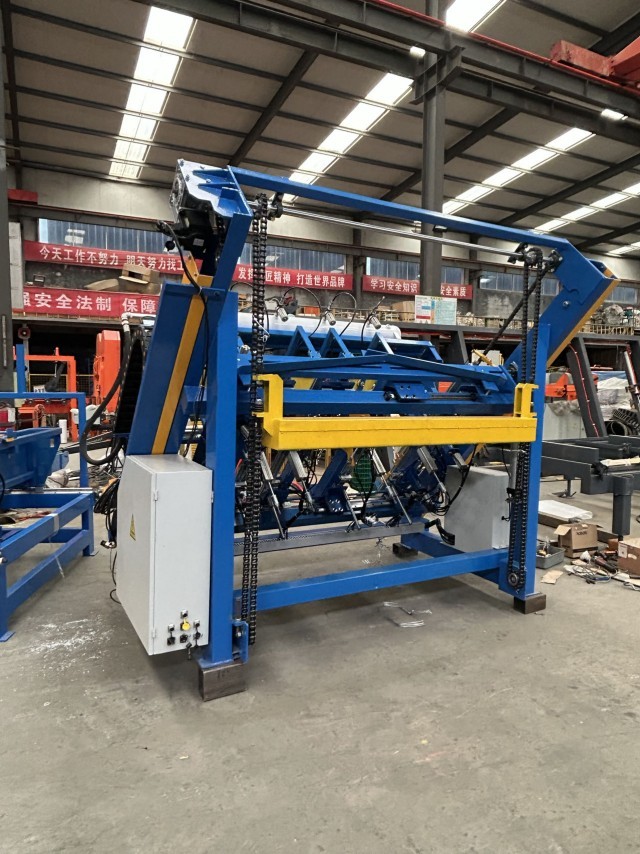

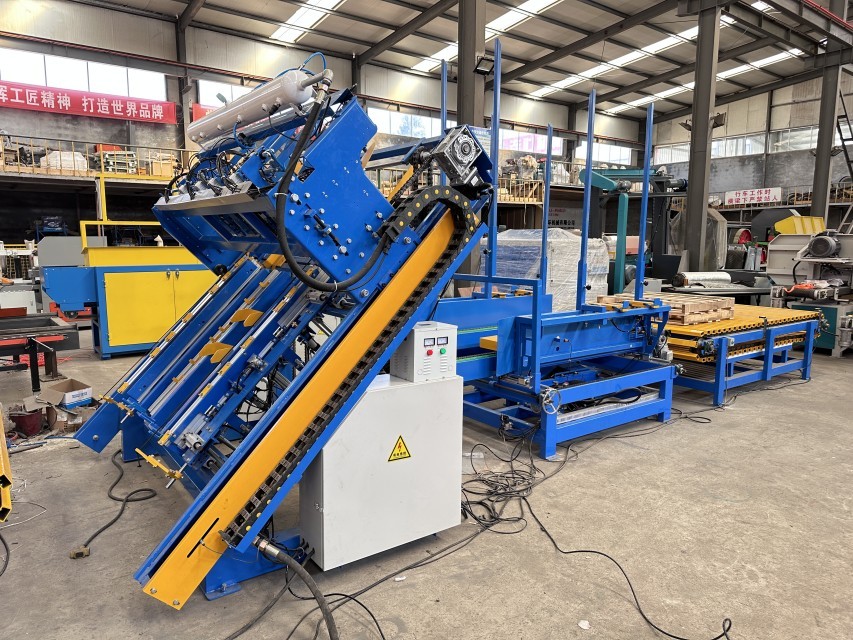

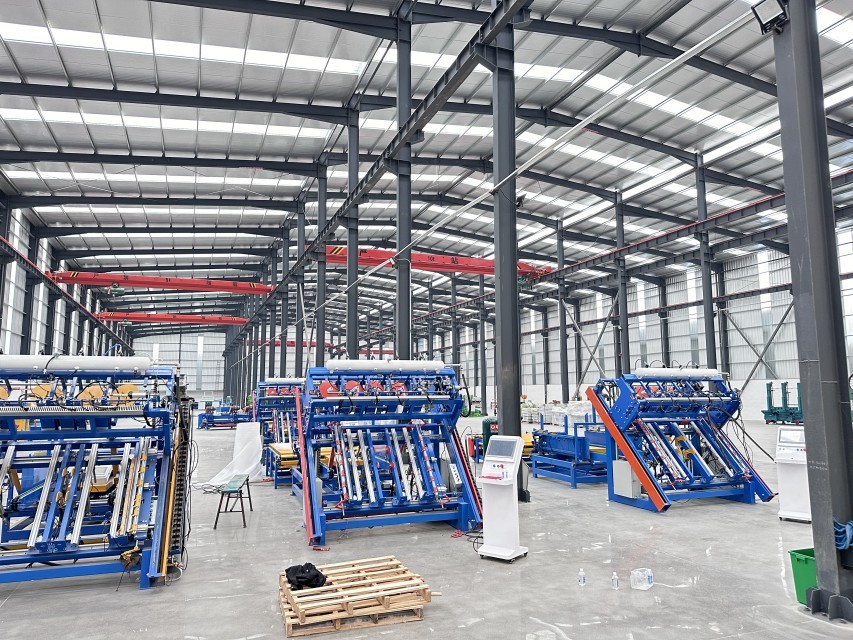

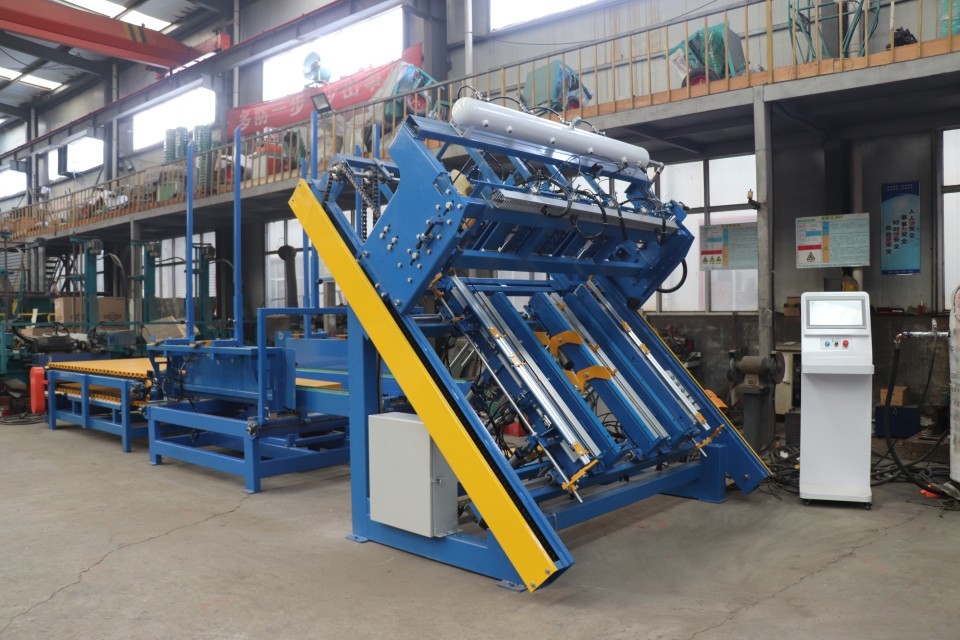

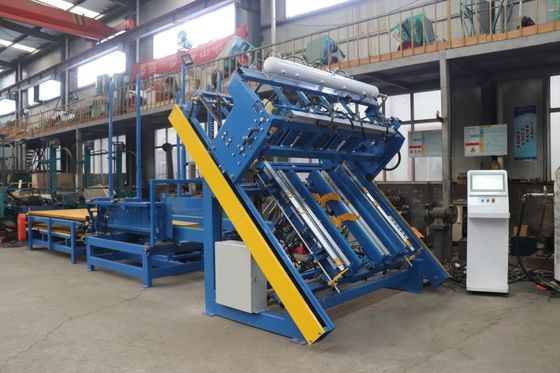

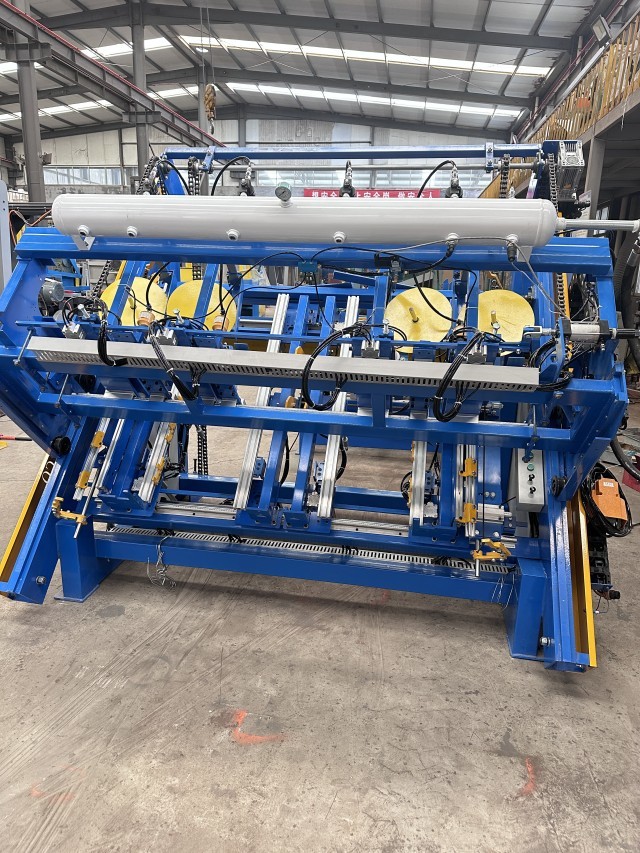

-- Detailed Image



Related Products

Pallet Notcher

Model	WPN-1	WPN-2
Power	15kw	30kw
Material of knife	Alloy	Alloy
Capacity	600-800pics/h	1800pics/h
Processing size	Wood pallet length: max 1800mm	Wood pallet length: max 1400mm
	Wood pallet width: 160mm	Wood pallet width: max 90mm
	Wood pallet thickness:40-60mm	Wood pallet thickness: 40-60mm
	Slot depth: <45mm	Slot depth: <45mm
	Slot width: 200-230mm	Slot width: 200-230mm
Machine size	1200*1100*1200mm	2300*1300*1300mm
Machine wight	400kg	1000kg
Feature	Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

Semi-Automatic wooden pallet nailing machine

Model	AWPN-1500
Wood pallet length	600-1300mm
Wood pallet width	800-1700mm
Feeding mode	Hand pull
Palletizing mode	Automatic
Operational mode	Pneumatic operation
Voltage	380V,480V or other
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production efficiency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Palletizing quantity	10P
Weight	2000kg

Manual American Wood Pallet Nailing Table

Processing Pallet Width:800-1700mm

Processing Pallet Length:1300mm

Manual Euro Wood Pallet Nailing Table

Processing Pallet Width:800-1700mm
Processing Pallet Length:1300mm

Model	PT-1600	PT-3300
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1600mm	900-3300mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production efficiency	30-40pcs /h	30-40pcs /h
Number of beams	3p (customized)	5p (customized)
Number of nail guns	2P (CN70,CN55) American Stanley staple gun	2P (CN70,CN55) American Stanley staple gun
Weight	650kg	950kg
Size	2400*980*1900mm	4000*980*1900mm

Automatic Euro Wood Pallet Nailing Machine



Why Choose This Machine?

✅ High Efficiency – Automated processes save time and labor
✅ Durability – Premium materials ensure long service life
✅ Flexibility – Produces various pallet types with easy adjustments
✅ Smart Control – Touch screen & remote capabilities for seamless operation

Ideal for pallet manufacturers, logistics companies, and warehouses, this American stringer beam nailing machine delivers unmatched performance in wood pallet production.

Conclusion



Upgrade your production line with this fully automated American wood pallet nailing machine – the perfect blend of precision, speed, and reliability. Whether you need standard or custom-sized pallets, this machine ensures high output with minimal manual intervention.

Contact us today to optimize your pallet manufacturing process!
